Air Motors
All air motors rotating clockwise are also available in rotating direction anti clockwise.
Reversible air motors can be used in rotating direction clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left,
the connection turning the air motor right is vented properly (and vize versa)
You must never close or block the connection which is not pressurized.
Could you not find a suitable motor please contact us. Our experts provide detailed advice about air motors or special solutions.
-
MRD 84-3000
Power0.84 kWSpeed under load3000 min⁻¹Torque2.70 NmMaximum Torque5.40 NmFree speed6000 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-3000 F80
Power0.84 kWSpeed under load3000 min⁻¹Torque2.70 NmMaximum Torque5.40 NmFree speed6000 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-2370
Power0.84 kWSpeed under load2370 min⁻¹Torque3.30 NmMaximum Torque6.60 NmFree speed4740 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-2370 F80
Power0.84 kWSpeed under load2370 min⁻¹Torque3.30 NmMaximum Torque6.60 NmFree speed4740 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-1350
Power0.84 kWSpeed under load1350 min⁻¹Torque5.90 NmMaximum Torque12.00 NmFree speed2700 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-1350 F80
Power0.84 kWSpeed under load1350 min⁻¹Torque5.90 NmMaximum Torque12.00 NmFree speed2700 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-660
Power0.83 kWSpeed under load660 min⁻¹Torque12.00 NmMaximum Torque24.00 NmFree speed1320 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-660 F80
Power0.83 kWSpeed under load660 min⁻¹Torque12.00 NmMaximum Torque24.00 NmFree speed1320 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-520
Power0.83 kWSpeed under load520 min⁻¹Torque15.00 NmMaximum Torque30.00 NmFree speed1040 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-520 F80
Power0.83 kWSpeed under load520 min⁻¹Torque15.00 NmMaximum Torque30.00 NmFree speed1040 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-295
Power0.83 kWSpeed under load295 min⁻¹Torque27.00 NmMaximum Torque54.00 NmFree speed590 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-295 F80
Power0.83 kWSpeed under load295 min⁻¹Torque27.00 NmMaximum Torque54.00 NmFree speed590 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-145
Power0.81 kWSpeed under load145 min⁻¹Torque53.00 NmMaximum Torque106.00 NmFree speed290 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-145 F100
Power0.81 kWSpeed under load145 min⁻¹Torque53.00 NmMaximum Torque106.00 NmFree speed290 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-90
Power0.81 kWSpeed under load90 min⁻¹Torque86.00 NmMaximum Torque172.00 NmFree speed180 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-90 F100
Power0.81 kWSpeed under load90 min⁻¹Torque86.00 NmMaximum Torque172.00 NmFree speed180 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -

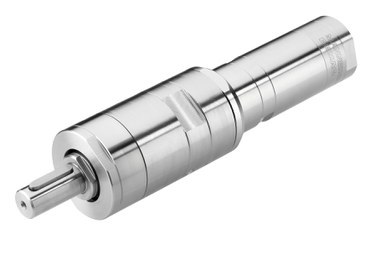

MRD 84-60
Power0.81 kWSpeed under load60 min⁻¹Torque129.00 NmMaximum Torque258.00 NmFree speed120 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -

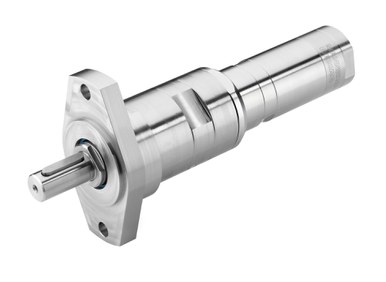

MRD 84-60 F100
Power0.81 kWSpeed under load60 min⁻¹Torque129.00 NmMaximum Torque258.00 NmFree speed120 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 84-35
Power0.79 kWSpeed under load35 min⁻¹Torque215.00 NmMaximum Torque430.00 NmFree speed70 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -

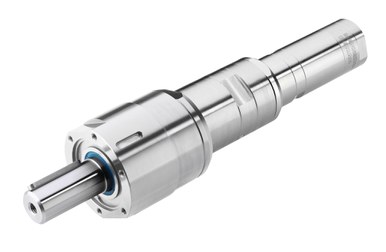

MRD 84-25
Power0.79 kWSpeed under load25 min⁻¹Torque301.00 NmMaximum Torque602.00 NmFree speed50 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-9300
Power1.2 kWSpeed under load9300 min⁻¹Torque1.20 NmMaximum Torque2.40 NmFree speed18600 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-9300 F100
Power1.2 kWSpeed under load9300 min⁻¹Torque1.20 NmMaximum Torque2.40 NmFree speed18600 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-2700
Power1.2 kWSpeed under load2700 min⁻¹Torque4.30 NmMaximum Torque8.60 NmFree speed5400 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-2700 F100
Power1.2 kWSpeed under load2700 min⁻¹Torque4.30 NmMaximum Torque8.60 NmFree speed5400 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-1600
Power1.2 kWSpeed under load1600 min⁻¹Torque7.00 NmMaximum Torque14.00 NmFree speed3200 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-1600 F100
Power1.2 kWSpeed under load1600 min⁻¹Torque7.00 NmMaximum Torque14.00 NmFree speed3200 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-1200
Power1.2 kWSpeed under load1200 min⁻¹Torque9.50 NmMaximum Torque19.00 NmFree speed2400 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-1200 F100
Power1.2 kWSpeed under load1200 min⁻¹Torque9.50 NmMaximum Torque19.00 NmFree speed2400 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-600
Power1.2 kWSpeed under load600 min⁻¹Torque19.00 NmMaximum Torque38.00 NmFree speed1200 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-600 F100
Power1.2 kWSpeed under load600 min⁻¹Torque19.00 NmMaximum Torque38.00 NmFree speed1200 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-360
Power1.2 kWSpeed under load360 min⁻¹Torque32.00 NmMaximum Torque63.00 NmFree speed720 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-360 F100
Power1.2 kWSpeed under load360 min⁻¹Torque32.00 NmMaximum Torque63.00 NmFree speed720 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -

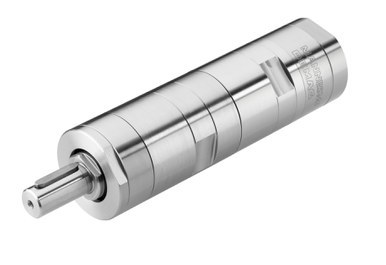

MRD 120-260
Power1.2 kWSpeed under load260 min⁻¹Torque44.00 NmMaximum Torque88.00 NmFree speed520 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-260 F100
Power1.2 kWSpeed under load260 min⁻¹Torque44.00 NmMaximum Torque88.00 NmFree speed520 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-140
Power1.2 kWSpeed under load140 min⁻¹Torque82.00 NmMaximum Torque164.00 NmFree speed280 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MRD 120-85
Power1.2 kWSpeed under load85 min⁻¹Torque135.00 NmMaximum Torque270.00 NmFree speed170 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -

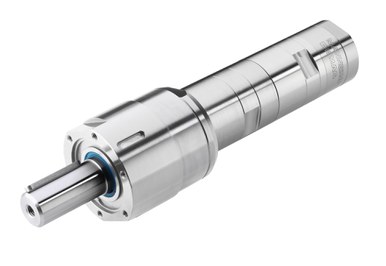

MRD 120-65
Power1.2 kWSpeed under load65 min⁻¹Torque176.00 NmMaximum Torque352.00 NmFree speed130 min⁻¹Direction of rotationclockwiseResistant to stalling4 weeks -
MU 200-3000
Power1.46 kWSpeed under load3000 min⁻¹Torque4.80 NmMaximum Torque9.60 NmFree speed6000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 200-1400
Power1.46 kWSpeed under load1400 min⁻¹Torque10.00 NmMaximum Torque20.00 NmFree speed2800 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 200-750 KRL
Power1.46 kWSpeed under load750 min⁻¹Torque19.00 NmMaximum Torque37.00 NmFree speed1500 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 200-500 KRL
Power1.46 kWSpeed under load500 min⁻¹Torque28.00 NmMaximum Torque56.00 NmFree speed1000 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MU 200-250 KRL
Power1.46 kWSpeed under load250 min⁻¹Torque56.00 NmMaximum Torque112.00 NmFree speed500 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MU 200-125 KRL
Power1.46 kWSpeed under load125 min⁻¹Torque112.00 NmMaximum Torque224.00 NmFree speed250 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 200-75 KRL
Power1.46 kWSpeed under load75 min⁻¹Torque186.00 NmMaximum Torque372.00 NmFree speed150 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 200-50 KRL
Power1.46 kWSpeed under load50 min⁻¹Torque279.00 NmMaximum Torque558.00 NmFree speed100 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 300-2800
Power2.2 kWSpeed under load2800 min⁻¹Torque7.50 NmMaximum Torque15.00 NmFree speed5600 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 300-1400
Power2.2 kWSpeed under load1400 min⁻¹Torque15.00 NmMaximum Torque30.00 NmFree speed2800 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MU 300-750 KRL
Power2.2 kWSpeed under load750 min⁻¹Torque29.00 NmMaximum Torque58.00 NmFree speed1500 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 300-500 KRL
Power2.2 kWSpeed under load500 min⁻¹Torque43.00 NmMaximum Torque86.00 NmFree speed1000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 300-250 KRL
Power2.2 kWSpeed under load250 min⁻¹Torque85.00 NmMaximum Torque170.00 NmFree speed500 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 300-125 KRL
Power2.2 kWSpeed under load125 min⁻¹Torque169.00 NmMaximum Torque338.00 NmFree speed250 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MU 300-75 KRL
Power2.2 kWSpeed under load75 min⁻¹Torque282.00 NmMaximum Torque564.00 NmFree speed150 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 400-2800
Power2.9 kWSpeed under load2800 min⁻¹Torque10.00 NmMaximum Torque20.00 NmFree speed5600 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MU 400-1400
Power2.9 kWSpeed under load1400 min⁻¹Torque20.00 NmMaximum Torque40.00 NmFree speed2800 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items
